Name: Contours

Display Field: ELEV_FT

Type: Feature Layer

Geometry Type: esriGeometryPolyline

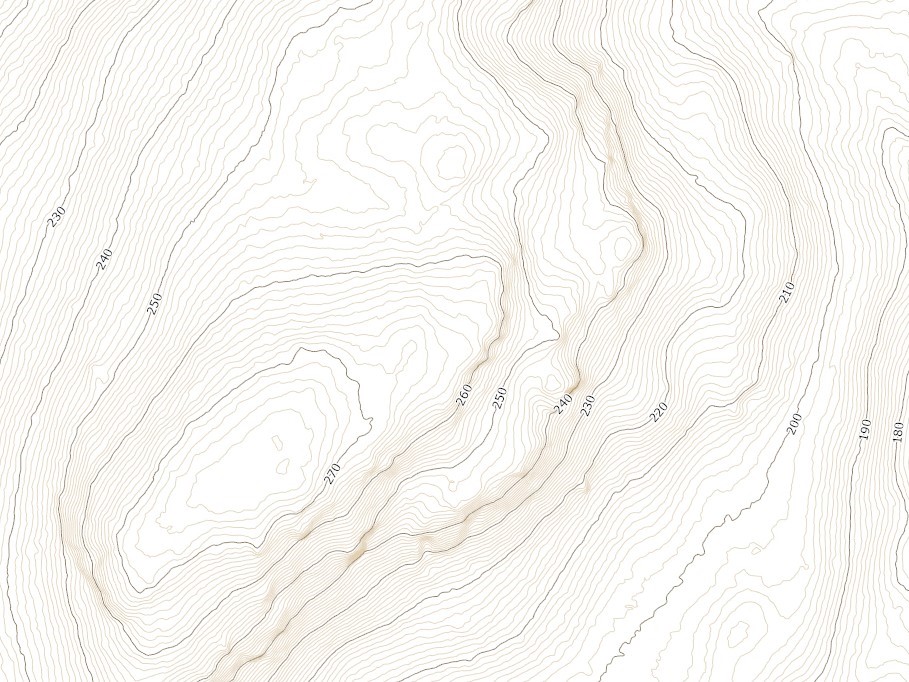

Description: MassGIS derived these contours from the USGS 2021 Central Eastern MA Lidar Project data.The Hydro-enforced digital elevation model (DEM) and water's edge breaklines were processed in ArcGIS Pro 3.0.3 using the Contours with Barriers3D Analyst Tool using a contour interval of 0.3048 (meters).The resultant isolines' meter elevations were then multiplied by 3.28084 in a new field to display the elevations with a vertical resolution of 1.0 foot

Service Item Id: 4e6dd91fa24546cda2ae087255de78d3

Copyright Text: MassGIS, USGS

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 10000

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 717575.8226521313
YMin: 2926561.801005304
XMax: 749634.893704474
YMax: 2960750.8090707213
Spatial Reference: 102686  (2249)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: Index
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: 0
  Label: One foot contour
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [137, 112, 68, 255]
  Width: 0
• Value: 10
  Label: Ten foot index contour
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [115, 76, 0, 255]
  Width: 0
• Value: 20
  Label: Ten foot index contour
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [115, 76, 0, 255]
  Width: 0
• Value: 50
  Label: Ten foot index contour
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [115, 76, 0, 255]
  Width: 0
• Value: 100
  Label: Ten foot index contour
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [115, 76, 0, 255]
  Width: 0
Transparency: 0
Labeling Info:
Label Placement: esriServerLinePlacementCenterAlong
Label Expression: [ELEV_FT]
Use Coded Values: true
Symbol:
Color: [115, 0, 0, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: baseline
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: normal
Font Weight: bold
Font Decoration: none

Min. Scale: 8000.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• ELEV_FT ( type: esriFieldTypeInteger, alias: ELEV_FT )
• Index ( type: esriFieldTypeSmallInteger, alias: Index )
• Shape_Length ( type: esriFieldTypeDouble, alias: Shape_Length )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
